24AWG 26AWG BC Cat5e Computer Network Cable FTP Outdoor Waterproof HDPE Insulation

Brand Name : BLG / OEM / ODM

Model Number : ETHERNET LAN CABLE

Certification : CE / ROHS / ISO

Place of Origin : CHINA

MOQ : 100 Rolls

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 3000 Rolls per Week

Delivery Time : 7 - 15 Work Days

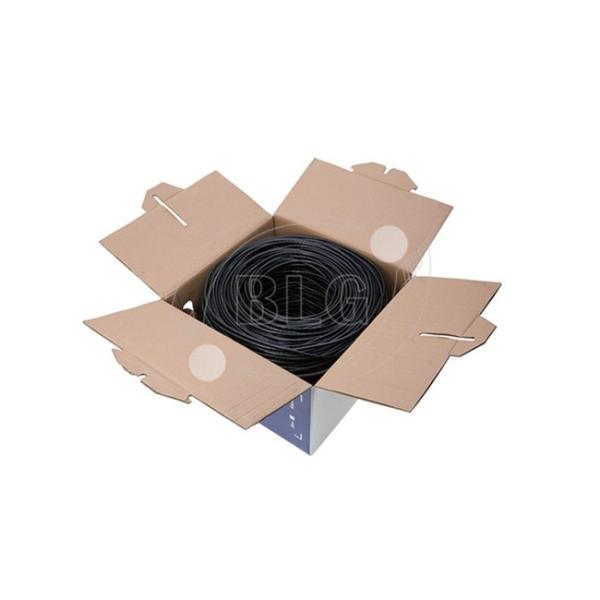

Packaging Details : 305M / Roll / Easy Pull Box, 2 Boxes / Carton

Item : FTP Cat5e Cable

Cable Type : Outdoor

Cable Length : 305M / 1000FT

Conductor : Bare Copper

Insulation : HDPE

Outer Jacket : Black PE

Contact Now

24AWG 26AWG BC Cat5e LAN Cable FTP Outdoor Waterproof Communication Cable

Features:

  • Fast and reliable connection
  • Twisted pairs with bright color for easy recognition
  • Polyester Tape, Drain Wire, Al Foil Shielding
  • Ripcord and foot - mark for convenient use
  • Smooth PE jacket for easy pulling in tight space
  • 1000ft per easy pull box, or as per customer's requirements
  • Sample available

Applications:

  • Computer network cabling project
  • Broadband network communication
  • Digital ISDN and ATM 155Mbps network
  • Ethernet network
  • Audio and data transmission

Cat5e FTP Outdoor Cable
Data Specifications
Inner Conductor Bare Copper / Copper - clad Aluminum
Conductor Diameter 24AWG Solid or Stranded
Insulation HDPE
Insulation Diameter 0.91 ± 0.05mm
Outer Jacket PE
Nominal O.D 5.8 ± 0.2mm
Pairs Color Code
Pair 1 Blue - white / blue
Pair 2 Orange - white / orange
Pair 3 Green - white / green
Pair 4 Brown - white / brown

Electrical Properties (at 20°C)
Conductor Resistance Max. 9.38Ω / 100m
Resistance Unbalance Max. 2%
Insulation Resistance Max. 150Ω / Km
Mutual Capacitance Max.5600pF / 100m
Capacitance Unbalance Max.330pF / 100m
Impedance 100 ± 15
Spark Test 2000V
Velocity of Propagation 67%
